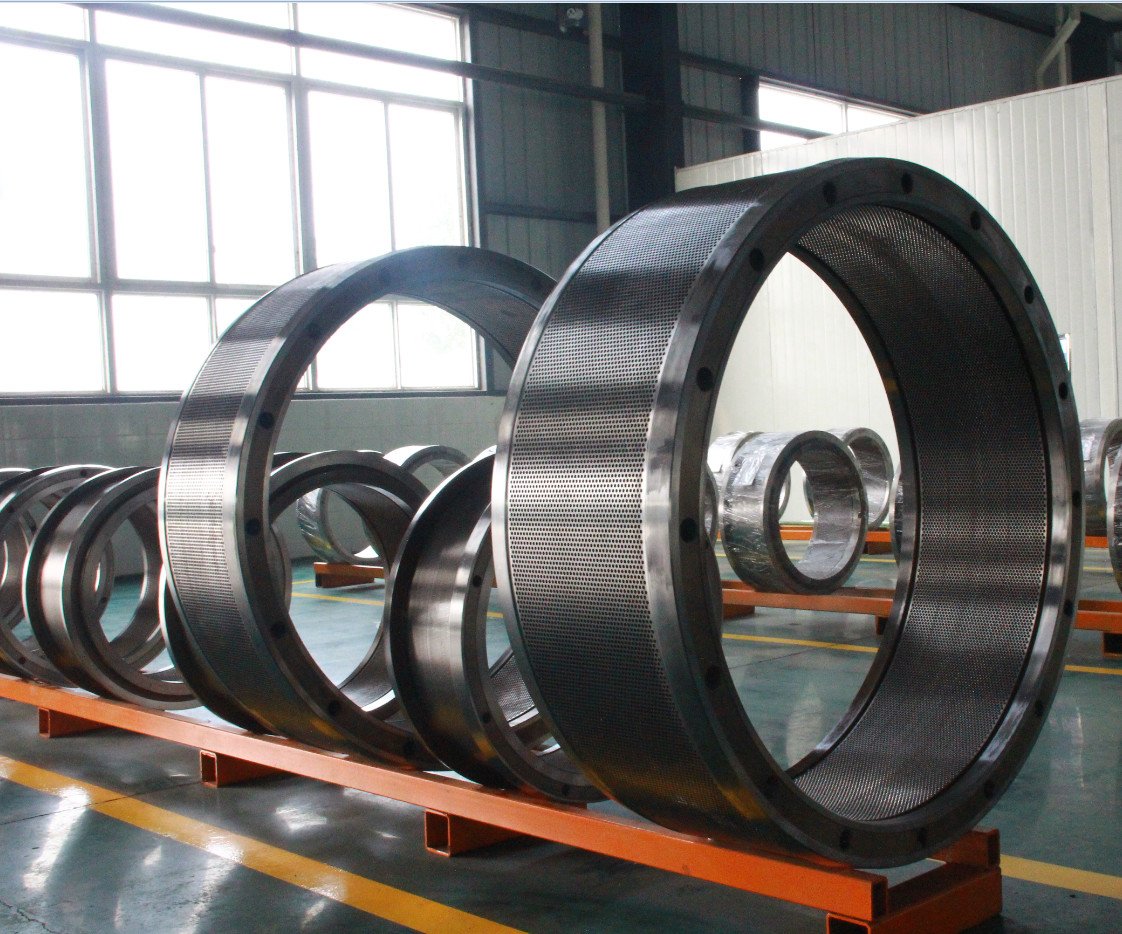

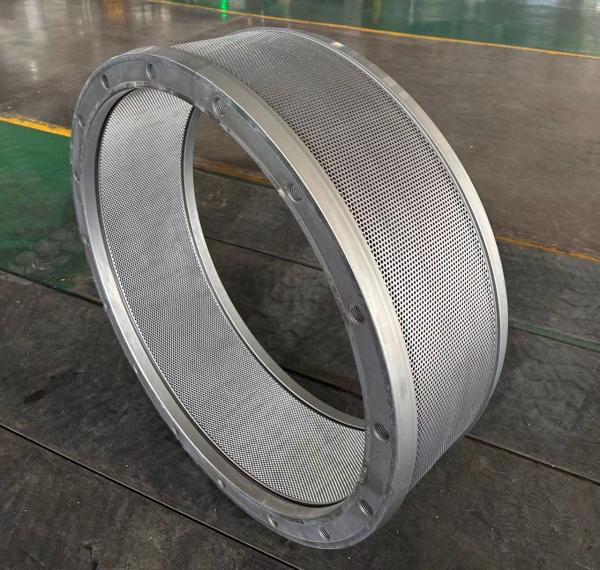

CPM 3022-9 CPM Dies Pellet Machine Ring Die High Wear Resistance

Name: CPM 30229 CPM Dies Pellet Machine Ring Die High Wear Resistance
Brand: SHANBAO
Price: 500 USD

Brand Name : SHANBAO

Model Number : CPM

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1

Price : $500-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 20-30work days

Packaging Details : pallet or plywood case or others

Items : Pellet Machine Ring Die

Size : As Drawing

CUSTOMIZED : YES

Contact Now

CPM 7730-9 CPM Dies Screw-Type Dies

Product Introduction:

1. The raw materials are made of high chromium stainless steel: the optimized carbon chromium ratio and refined grain elements make the die have excellent wear resistance and stronger fatigue fracture resistance.

2. We have the ability of forging raw materials and a scientific early-stage heat treatment process.

3. The die’s hole adopts European gun drilling process, combined with vacuum heat treatment process, the die hole finish can reach Ra 0.4 ~ 1.6, and the ring die’s hardness can reach 52 ~ 55 HRC.

4. Excellent manufacturing equipment, stable process, controllable digital control, and achieve stable quality of products.

5. Unique release hole processing technology makes pellets more smooth and better quality.

Product Advantages:

1. High Productivity

2.High impact-resistance

3.High wear-resistance

4.High corrosion-resistance

5.High fatigue-resistance

6.High Accuracy

7.Long Lifespan

Parameters:

Raw Material	X46Cr13 or 4Cr13
Hole Finish	Ra0.4-1.2
Hardness	52-55HRC
Blind Hole Number	0
Heat Treatmant	Vacuum heat treatment
Aperture Specification	1-12mm
Specisl design and customization	Support
